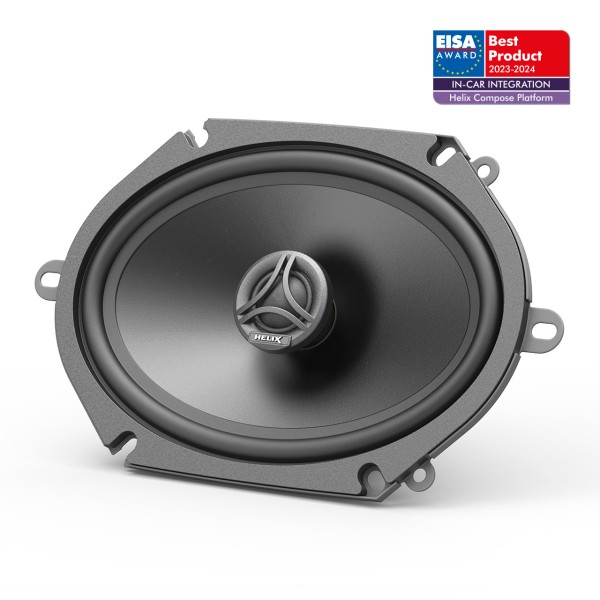

Name: HELIX-CB-C570.2-S3 COAXIALES 5*7"
SKU: HELIX-CB-C570.2-S3
Availability: InStock

Descripción

HELIX-CB-C570.2-S3 COAXIALES 5*7"

Sistema de altavoces coaxiales de 5 x 7"/130 x 180mm con impedancia de 3 Ω y tweeter de cúpula de seda

Technical data

Power handling RMS / Max.	P	70 / 105 Watts
Frequency response		60 Hz – 22,000 Hz
Impedance	Z	3 Ω
Sensitivity	SPL	92 dB @ 2.83V / 1m 88 dB @ 1W / 1m
Outer diameter	ø	228.8 x 144.0 mm / 9.01 x 5.67”
Installation diameter	ø	181.5 x 125.5 mm / 7.15 x 4.94”
Installation depth		58.4 mm / 2.30”

Midrange
Impedance	Z	3 Ω
DC resistance	Re	3.0 Ω
Resonance frequency	Fs	67 Hz
Mechanical Q factor	Qms	3.64
Electrical Q factor	Qes	1.04
Total Q factor	Qts	0.81
Compliance	Cms	399 μm/N
Equivalent air volume	Vas	12.4 L
Force factor	Bl*	4.2 Tm
Cone area	Sd	149 cm2
Moving mass	Mms	14.3 g
Mechanical resistance	Rms	1.64 kg/s
Voice coil diameter	ø	25 mm
Voice coil winding height		8.9 mm
Max. linear excursion	Xmax	+/- 2.5 mm

Tweeter
Voice coil diameter	ø	20 mm

Features
Tweeter		Silk dome and neodymium magnet
Midbass		Injected polypropylene cone
Crossover		Integrated, 6 dB highpass

Scope of delivery

2 x CB C570.2-S3
1 x Mounting material
