HELIX-CB-K100.2-S3 KIT ALTAVOCES 4″
HELIX-CI3-C100.2FM-S3 COAXIALES 4″
Sistema de altavoces coaxiales de alto rendimiento de 4”/100 mm con impedancia de 3 Ω, tweeter de titanio y tecnología FlexMount
199,00 €
Descripción

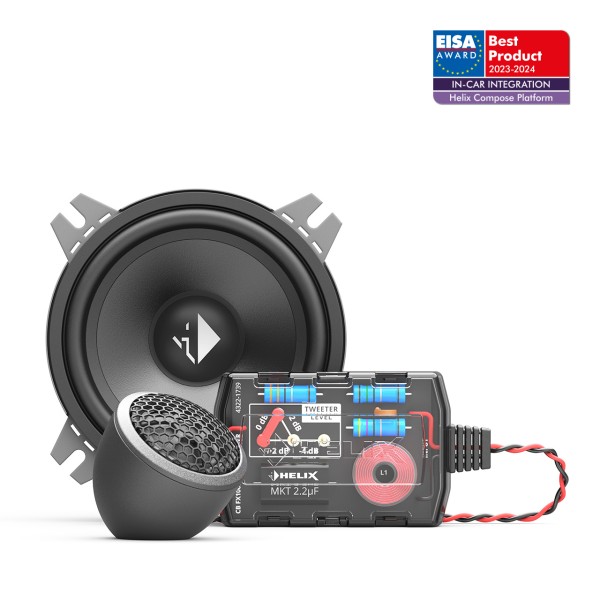

HELIX-CB-K100.2-S3 KIT ALTAVOCES 4"
Kit de altavoces de 4"/100 mm con impedancia de 3 Ω y tweeter de cúpula de seda con tecnología FlexMount20
Technical data
|
Power handling RMS / Max. |
P |
60 / 90 Watts |
|
Frequency response |
|
100 Hz – 22,000 Hz |
|
Impedance |
Z |
3 Ω |
|
Sensitivity |
SPL |
88 dB @ 2.83V / 1m |
|
Outer diameter |
ø |
Tweeter: 32.0 mm / 1.26” |
|
Installation diameter |
ø |
Tweeter: 32.0 mm / 1.26” |
|
Installation depth |
|
Tweeter: 9.8 mm / 0.39” |
|
Dimensions crossover |
|
103.3 x 50.4 x 25.0 mm / |
|
|
||
|
Midrange |
||
|
Impedance |
Z |
3 Ω |
|
DC resistance |
Re |
3.1 Ω |
|
Resonance frequency |
Fs |
116 Hz |
|
Mechanical Q factor |
Qms |
5.05 |
|
Electrical Q factor |
Qes |
0.97 |
|
Total Q factor |
Qts |
0.81 |
|
Compliance |
Cms |
250 μm/N |
|
Equivalent air volume |
Vas |
0.9 L |
|
Force factor |
B*l |
4.2 Tm |
|
Cone area |
Sd |
50 cm2 |
|
Moving mass |
Mms |
7.5 g |
|
Mechanical resistance |
Rms |
1.09 kg/s |
|
Voice coil diameter |
ø |
25 mm |
|
Voice coil winding height |
|
8.9 mm |
|
Max. linear excursion |
Xmax |
+/- 2.5 mm |
|
|
||
|
Tweeter |
||
|
Impedance |
Z |
4 Ω |
|
Resonance frequency |
Fs |
2000 Hz |
|
Voice coil diameter |
ø |
20 mm |
|
|
||
|
Features |
||
|
Tweeter |
|
Ultra compact, silk dome, neodymium magnet and FlexMount20 |
|
Midrange |
|
Injected polypropylene cone |
|
Crossover |
|
Tweeter: 12 dB highpass, protection and level adjustment |
Compatibility
- FlexMount20
Scope of delivery
2 x Tweeter CB T20FM-S
2 x Midrange CB W100-S3
2 x Crossover CB FX100.2
2 x Tweeter mounting accessories
1 x Mounting material
