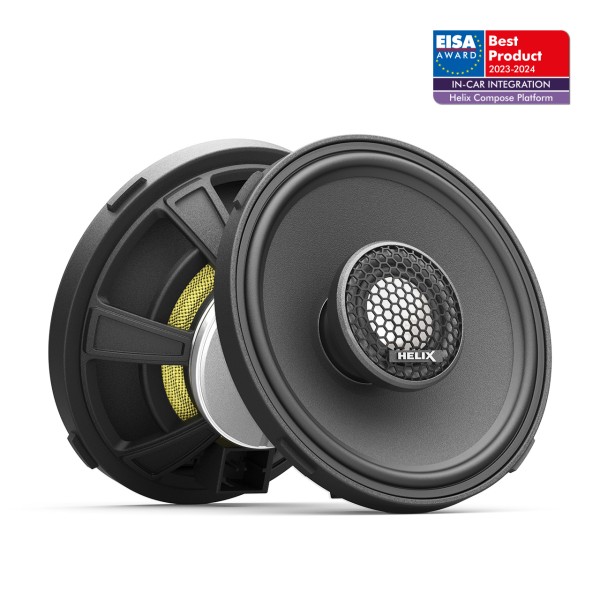

HELIX-CI3-C100.2FM-S3 COAXIALES 4″
HELIX-CI3-C100.2FM-S3 COAXIALES 4″
Sistema de altavoces coaxiales de alto rendimiento de 4”/100 mm con impedancia de 3 Ω, tweeter de titanio y tecnología FlexMount
199,00 €
Descripción
HELIX-CI3-C100.2FM-S3 COAXIALES 4"
Sistema de altavoces coaxiales de alto rendimiento de 4"/100 mm con impedancia de 3 Ω, tweeter de titanio y tecnología FlexMount
Technical data
|
Power handling RMS / Max. |
P |
80 / 120 Watts |
|
Frequency response |
|
100 Hz – 25,000 Hz |
|
Impedance |
Z |
3 Ω |
|
Sensitivity |
SPL |
91 dB @ 2.83V / 1m |
|
Outer diameter |
ø |
98.0 mm / 3.86” |
|
Installation diameter |
ø |
89.0 mm / 3.50” |
|
Installation depth |
|
30.0 mm / 1.18” |
|
|
||
|
Midrange |
||
|
Impedance |
Z |
3 Ω |
|
DC resistance |
Re |
3.0 Ω |
|
Resonance frequency |
Fs |
137 Hz |
|
Mechanical Q factor |
Qms |
4.37 |
|
Electrical Q factor |
Qes |
0.78 |
|
Total Q factor |
Qts |
0.66 |
|
Compliance |
Cms |
456 μm/N |
|
Equivalent air volume |
Vas |
2.1 L |
|
Force factor |
B*l |
3.2 Tm |
|
Cone area |
Sd |
57 cm2 |
|
Moving mass |
Mms |
3.0 g |
|
Mechanical resistance |
Rms |
0.58 kg/s |
|
Voice coil diameter |
ø |
25 mm |
|
Voice coil winding height |
|
4.8 mm |
|
Max. linear excursion |
Xmax |
+/- 2.0 mm |
|
|
||
|
Tweeter |
||
|
Voice coil diameter |
ø |
20 mm |
|
|
||
|
Features |
||
|
Tweeter |
|
Titanium dome and neodymium magnet |
|
Midbass |
|
Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount100 |
|
Crossover |
|
Integrated, 6 dB highpass |
Compatibility
- FlexMount100
- FlexConnect inlays
Scope of delivery
2 x Ci3 C100.2FM-S3
2 x Universal FlexMount100 (with standard 4-point mounting)
2 x FlexConnect inlay A
2 x Universal connection cable
1 x Mounting material
