Name: HELIX-CI3-C130.2-S3 COAXIALES 5.25"
SKU: HELIX-CI3-C130.2-S3
Availability: InStock

Descripción

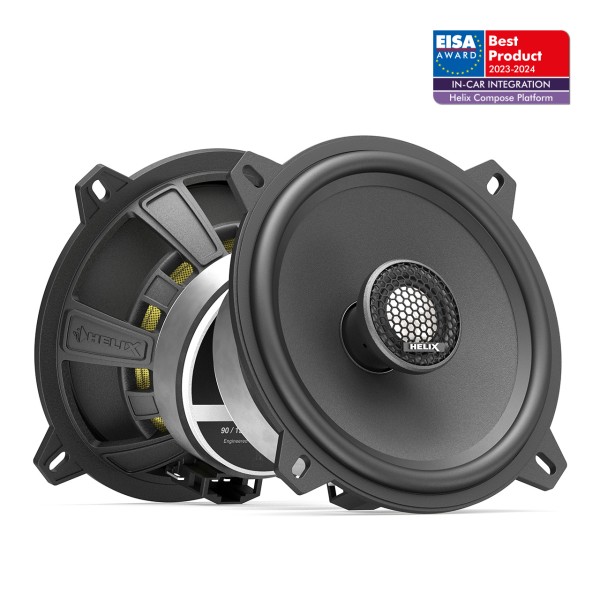

HELIX-CI3-C130.2-S3 COAXIALES 5.25"

Sistema de altavoces coaxiales de alto rendimiento de 5,25"/130 mm con impedancia de 3 Ω y tweeter de titanio

Technical data

Power handling RMS / Max.	P	90 / 135 Watts
Frequency response		80 Hz – 25,000 Hz
Impedance	Z	3 Ω
Sensitivity	SPL	92 dB @ 2.83V / 1m 88 dB @ 1W / 1m
Outer diameter	ø	130.0 mm / 5.12”
Installation diameter	ø	116.5 mm / 4.59”
Installation depth		55.4 mm / 2.18”

Midbass
Impedance	Z	3 Ω
DC resistance	Re	3.0 Ω
Resonance frequency	Fs	92 Hz
Mechanical Q factor	Qms	2.76
Electrical Q factor	Qes	0.90
Total Q factor	Qts	0.68
Compliance	Cms	374 μm/N
Equivalent air volume	Vas	4.9 L
Force factor	Bl*	3.8 Tm
Cone area	Sd	97 cm2
Moving mass	Mms	7.6 g
Mechanical resistance	Rms	1.60 kg/s
Voice coil diameter	ø	25 mm
Voice coil winding height		10.5 mm
Max. linear excursion	Xmax	+/- 3.2 mm

Tweeter
Voice coil diameter	ø	20 mm

Features
Tweeter		Titanium dome and neodymium magnet
Midbass		Paper with Cenosphere coating and ProConnect terminal
Crossover		Integrated, 6 dB highpass

Compatibility

Scope of delivery

2 x Ci3 C130.2-S3
1 x Mounting material

Brand	HELIX
Marca de Coche	Alfa Romeo, Audi, AUTOCARAVANA, Bmw, Bugatti, BYD, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, daewoo, Dodge, Ferrari, Fiat, Ford, GM, Honda, Hummer, Hyundai, Iveco, Jaguar, jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Mazda, Mercedes Benz, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Range Rover, Renault, Rolls Royce, Rover, Saab, Seat, Skoda, Smart, Ssang Yong, Subaru, Suzuki, Tata, Tesla, Toyota, Universales, Volkswagen, Volvo
CAR AUDIO	ALTAVOCES
Tipo producto car audio	ALTAVOCES

HELIX-CI3-C130.2-S3 COAXIALES 5.25″
