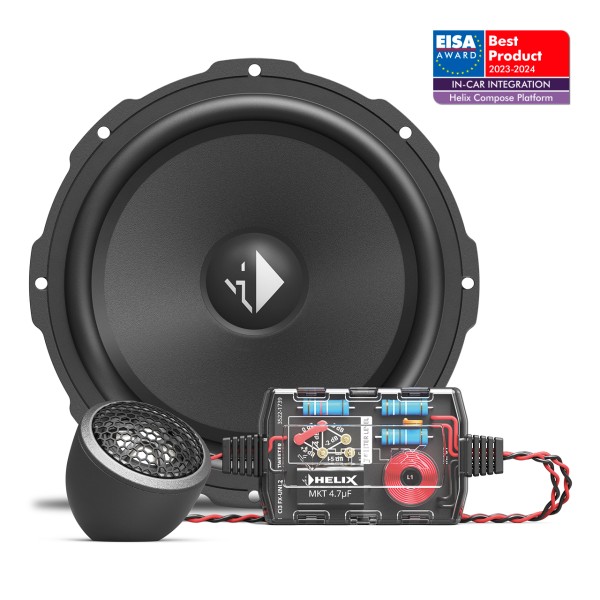

HELIX-CI3-K165.2FM-S3 KIT ALTAVOCES 6.5″
HELIX-CI3-K165.2FM-S3 KIT ALTAVOCES 6.5″
Kit de altavoces de alto rendimiento de 6,5”/165 mm con impedancia de 3 Ω, tweeter de titanio y tecnología FlexMount
299,00 €
Descripción
HELIX-CI3-K165.2FM-S3 KIT ALTAVOCES 6.5"
Kit de altavoces de alto rendimiento de 6,5"/165 mm con impedancia de 3 Ω, tweeter de titanio y tecnología FlexMount
Technical data
|
Power handling RMS / Max. |
P |
100 / 150 Watts |
|
Frequency response |
|
60 Hz – 25,000 Hz |
|
Impedance |
Z |
2 Ω |
|
Sensitivity |
SPL |
94 dB @ 2.83V / 1m |
|
Outer diameter |
ø |
Tweeter: 32.0 mm / 1.26” |
|
Installation diameter |
ø |
Tweeter: 32.0 mm / 1.26” |
|
Installation depth |
|
Tweeter: 9.8 mm / 0.39” |
|
Dimensions crossover |
|
103.3 x 50.4 x 25.0 mm / |
|
|
||
|
Midbass |
||
|
Impedance |
Z |
2 Ω |
|
DC resistance |
Re |
1.8 Ω |
|
Resonance frequency |
Fs |
74 Hz |
|
Mechanical Q factor |
Qms |
3.92 |
|
Electrical Q factor |
Qes |
0.92 |
|
Total Q factor |
Qts |
0.74 |
|
Compliance |
Cms |
370 μm/N |
|
Equivalent air volume |
Vas |
8.8 L |
|
Force factor |
B*l |
3.4 Tm |
|
Cone area |
Sd |
133 cm2 |
|
Moving mass |
Mms |
12.5 g |
|
Mechanical resistance |
Rms |
1.48 kg/s |
|
Voice coil diameter |
ø |
25 mm |
|
Voice coil winding height |
|
11.3 mm |
|
Max. linear excursion |
Xmax |
+/- 3.7 mm |
|
|
||
|
Tweeter |
||
|
Impedance |
Z |
4 Ω |
|
Resonance frequency |
Fs |
1800 Hz |
|
Voice coil diameter |
ø |
20 mm |
|
|
||
|
Features |
||
|
Tweeter |
|
Ultra compact, titanium dome, neodymium magnet and FlexMount20 |
|
Midbass |
|
Paper with Cenosphere coating, ProConnect terminal and FlexMount165 |
|
Crossover |
|
Tweeter: 12 dB highpass, protection and level adjustment |
Compatibility
- FlexMount20
- FlexMount165
- WireKits
Scope of delivery
2 x Tweeter Ci3 T20FM-TI
2 x Midbass Ci3 W165FM-S2
2 x Crossover Ci3 FX-UNI.2
2 x Lowpass cable crossover Ci3 FX-WLP.2
2 x Tweeter mounting accessories
2 x COMPOSE Connect Kit
1 x Mounting material
