Power handling RMS / Max.

 P

100 / 150 Watts

Frequency response

50 Hz – 25,000 Hz

Impedance

Z

3 Ω

Sensitivity

 SPL

94 dB @ 2.83V / 1m
90 dB @ 1W / 1m

Outer diameter

ø

Tweeter: 32.0 mm / 1.26”
Woofer: 195.0 mm / 7.68”
Woofer with universal mounting ring: 208.9 mm / 8.22"

Installation diameter

ø

Tweeter: 32.0 mm / 1.26”
Woofer: 173.5 mm / 6.83”

Installation depth

Tweeter: 9.8 mm / 0.39”
Woofer: 63.7 mm / 2.51”

Dimensions crossover

103.3 x 50.4 x 25.0 mm /
4.07 x 1.98 x 0.98”

Woofer

Impedance

Z

3 Ω

DC resistance

Re

3.0 Ω

Resonance frequency

Fs

67 Hz

Mechanical Q factor

Qms

4.25

Electrical Q factor

Qes

0.93

Total Q factor

Qts

0.76

Compliance

Cms

300 μm/N

Equivalent air volume

Vas

19.0 L

Force factor

B*l

5.1 Tm

Cone area

Sd

214 cm2

Moving mass

Mms

18.8 g

Mechanical resistance

Rms

1.87 kg/s

Voice coil diameter

 ø

25 mm

Voice coil winding height

11.6 mm

Max. linear excursion

Xmax

+/- 3.8 mm

Tweeter

Impedance

Z

4 Ω

Resonance frequency

Fs

1800 Hz

Voice coil diameter

ø

20 mm

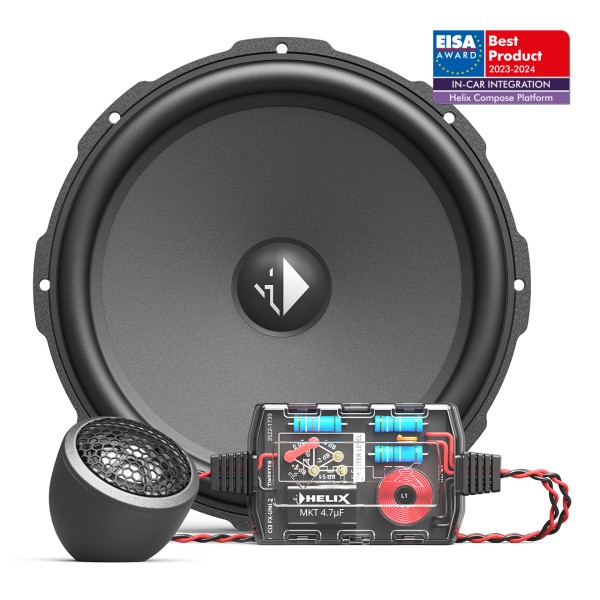

Features

Tweeter

Ultra compact, titanium dome, neodymium magnet and FlexMount20

Woofer

Paper with Cenosphere coating, ProConnect terminal, FlexMount200 and grille

Crossover

Tweeter: 12 dB highpass, protection and level adjustment
