HELIX-CI3-M100FM-S3 MEDIOS 4″
HELIX-CB-C690.2-S3 COAXIALES 6*9″
Sistema de altavoces coaxiales de 6 x 9”/160 x 230 mm con impedancia de 3 Ω y tweeter de cúpula de seda
149,00 €
Descripción

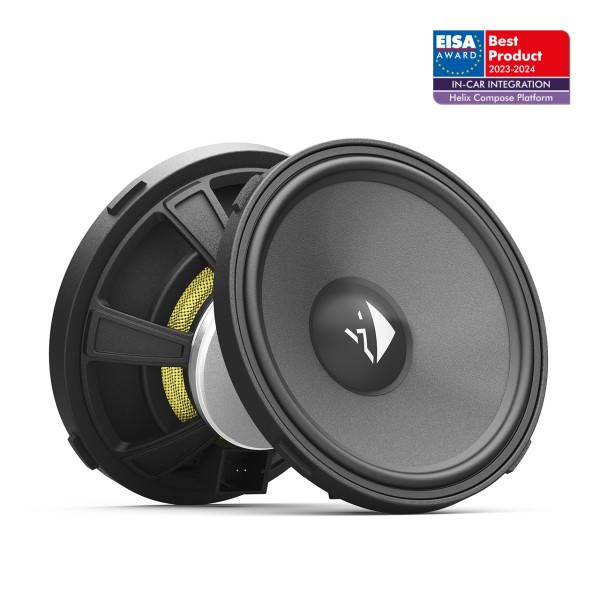

HELIX-CI3-M100FM-S3 MEDIOS 4"
Rango medio de rendimiento de 4"/100 mm con impedancia de 3 Ω, tecnología FlexMount100 y cono de papel recubierto Cenosphere
Technical data
|
Power handling RMS / max. |
P |
80 / 120 Watts |
|
Impedance |
Z |
3 Ω |
|
DC resistance |
Re |
3.0 Ω |
|
Frequency response |
|
120 Hz – 6,000 Hz |
|
Resonance frequency |
Fs |
146 Hz |
|
Mechanical Q factor |
Qms |
4.49 |
|
Electrical Q factor |
Qes |
1.02 |
|
Total Q factor |
Qts |
0.83 |
|
Compliance |
Cms |
280 µm/N |
|
Equivalent air volume |
Vas |
1.1 L |
|
Force factor |
B*I |
3.4 Tm |
|
Sensitivity |
SPL |
91 dB @ 2.83 V / 1m |
|
Cone area |
Sd |
53 cm² |
|
Moving mass |
Mms |
4.3 g |
|
Cone material |
|
Paper with Cenosphere coating |
|
Mechanical resistance |
Rms |
0.87 kg/s |
|
Voice coil diameter |
ø |
25 mm |
|
Voice coil winding height |
|
4.8 mm |
|
Max. linear excursion |
Xmax |
+/- 2.0 mm |
|
Outer diameter |
ø |
98 mm / 3.86" |
|
Outer diameter with universal mounting ring |
ø |
104,5 mm / 4.11" |
|
Installation diameter |
ø |
89 mm / 3.50" |
|
Installation depth |
|
30 mm / 1.18" |
|
Features |
|
FlexConnect terminal, |
Compatibility
- FlexMount100
- FlexConnect Inlays
Scope of delivery
2 x Ci3 M100FM-S3
2 x Universal FlexMount100 (with standard 4-point mounting)
2 x FlexConnect inlay A
2 x Universal connection cable
2 x Mounting material
