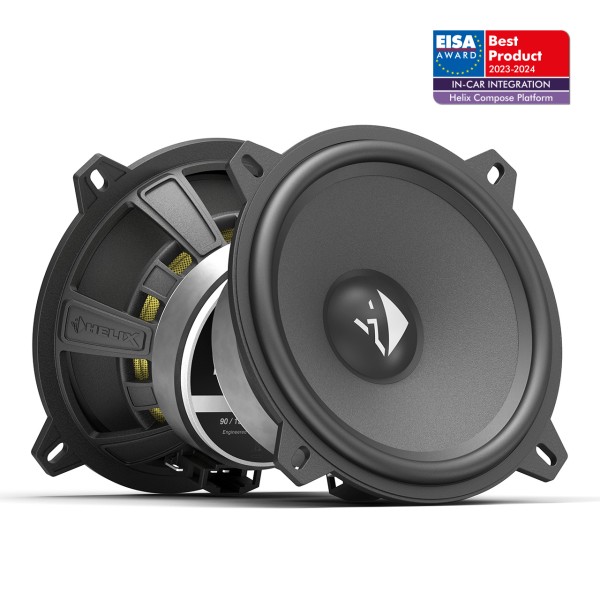

Name: HELIX-CI3-W130-S3 MEDIOS GRAVES 5.25"
SKU: HELIX-CI3-W165FM-S2-1
Availability: InStock

Descripción

HELIX-CI3-W130-S3 MEDIOS GRAVES 5.25"

Medios graves de rendimiento de 5,25"/130 mm con impedancia de 3 Ω y cono de papel recubierto Cenosphere

Technical data

Power handling RMS / max.	P	90 / 135 Watts
Impedance	Z	3 Ω
DC resistance	Re	3.1 Ω
Frequency response		80 Hz – 4,000 Hz
Resonance frequency	Fs	89 Hz
Mechanical Q factor	Qms	3.11
Electrical Q factor	Qes	0.97
Total Q factor	Qts	0.74
Compliance	Cms	350 µm/N
Equivalent air volume	Vas	4.6 L
Force factor	BI*	4.0 Tm
Sensitivity	SPL	91 dB @ 2.83 V / 1m 87 dB @ 1W / 1m
Cone area	Sd	98 cm²
Moving mass	Mms	9.1 g
Cone material		Paper with Cenosphere coating
Mechanical resistance	Rms	1.65 kg/s
Voice coil diameter	ø	25 mm
Voice coil winding height		10.5 mm
Max. linear excursion	Xmax	+/- 3.2 mm
Outer diameter	ø	130 mm / 5.12"
Installation diameter	ø	116.5 mm / 4.59"
Installation depth		55.4 mm / 2.18"
Features		ProConnect terminal

Compatibility

Scope of delivery

2 x Ci3 W130-S3
2 x Mounting material

Brand	HELIX
Marca de Coche	Alfa Romeo, Audi, AUTOCARAVANA, Bmw, Bugatti, BYD, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, daewoo, Dodge, Ferrari, Fiat, Ford, GM, Honda, Hummer, Hyundai, Iveco, Jaguar, jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Mazda, Mercedes Benz, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Range Rover, Renault, Rolls Royce, Rover, Saab, Seat, Skoda, Smart, Ssang Yong, Subaru, Suzuki, Tata, Tesla, Toyota, Universales, Volkswagen, Volvo
CAR AUDIO	ALTAVOCES
Tipo producto car audio	ALTAVOCES

HELIX-CI3-W130-S3 MEDIOS GRAVES 5.25″
