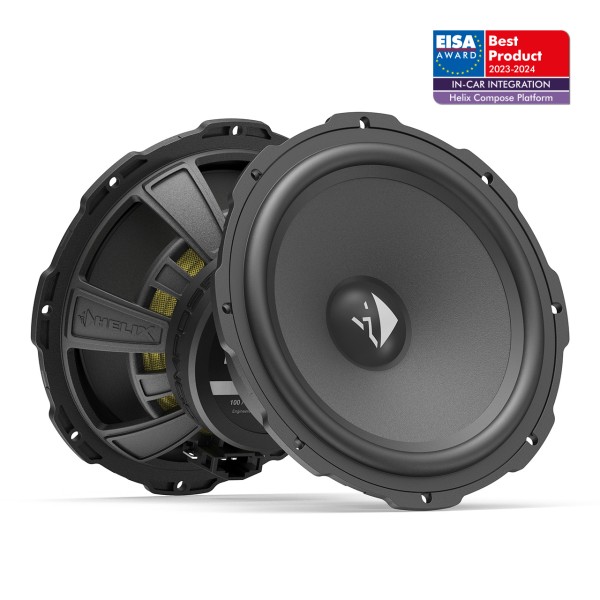

Name: HELIX-CI3-W165FM-S2 GRAVES 6.5"
SKU: HELIX-CI3-W165FM-S2
Availability: InStock

Descripción

HELIX-CI3-W165FM-S2 GRAVES 6.5"

Medios graves de rendimiento de 6,5"/165 mm con impedancia de 2 Ω, tecnología FlexMount165 y cono de papel recubierto CenosphereTechnical data

Technical data

Power handling RMS / max.	P	100 / 150 Watts
Impedance	Z	2 Ω
DC resistance	Re	1.8 Ω
Frequency response		60 Hz – 3,500 Hz
Resonance frequency	Fs	74 Hz
Mechanical Q factor	Qms	3.92
Electrical Q factor	Qes	0.92
Total Q factor	Qts	0.74
Compliance	Cms	370 µm/N
Equivalent air volume	Vas	8.8 L
Force factor	BI*	3.5 Tm
Sensitivity	SPL	94 dB @ 2.83 V / 1m 88 dB @ 1W / 1m
Cone area	Sd	133 cm²
Moving mass	Mms	12.5 g
Cone material		Paper with Cenosphere coating
Mechanical resistance	Rms	1.48 kg/s
Voice coil diameter	ø	25 mm
Voice coil winding height		11.3 mm
Max. linear excursion	Xmax	+/- 3.7 mm
Outer diameter	ø	165 mm / 6.5"
Installation diameter	ø	142 mm / 5.59"
Installation depth		60.7 mm / 2.39"
Features		ProConnect terminal, FlexMount165

Compatibility

Scope of delivery

2 x Ci3 W165FM-S2
2 x Mounting material
