Name: HELIX-CI3-W200FM-S2 WOOFER ALTO RENDIMIENTO 8"
SKU: HELIX-CI3-W200FM-S2
Availability: InStock

Descripción

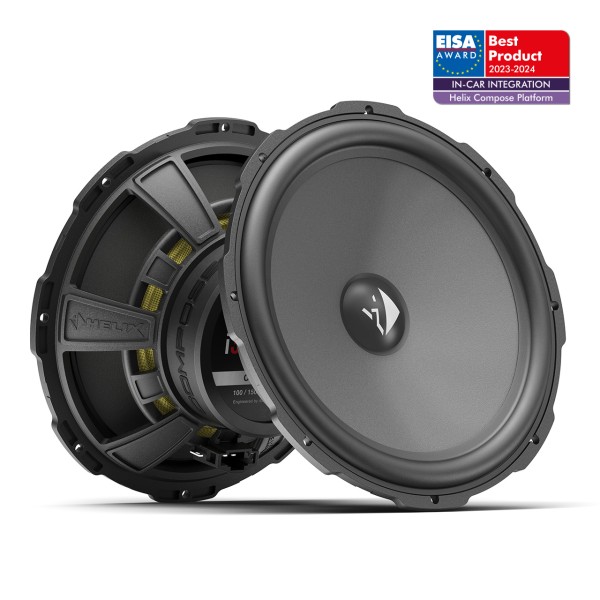

HELIX-CI3-W200FM-S2 WOOFER ALTO RENDIMIENTO 8"

Woofer de alto rendimiento de 8"/200 mm con impedancia de 2 Ω, tecnología FlexMount y cono de papel recubierto Cenosphere

Technical data

Power handling RMS / max.	P	100 / 150 Watts
Impedance	Z	2 Ω
DC resistance	Re	1.8 Ω
Frequency response		50 Hz – 3,000 Hz
Resonance frequency	Fs	72 Hz
Mechanical Q factor	Qms	4.56
Electrical Q factor	Qes	1.09
Total Q factor	Qts	0.88
Compliance	Cms	230 µm/N
Equivalent air volume	Vas	14.5 L
Force factor	BI*	4.0 Tm
Sensitivity	SPL	96 dB @ 2.83 V / 1m 90 dB @ 1W / 1m
Cone area	Sd	214 cm²
Moving mass	Mms	20.8 g
Cone material		Paper with Cenosphere coating
Mechanical resistance	Rms	2.07 kg/s
Voice coil diameter	ø	25 mm
Voice coil winding height		11.9 mm
Max. linear excursion	Xmax	+/- 4.0 mm
Outer diameter	ø	195 mm / 7.68"
Outer diameter with universal mounting ring	ø	208.9 mm / 8.22"
Installation diameter	ø	173.5 mm / 6.83"
Installation depth		63.7 mm / 2.51"
Features		ProConnect terminal, FlexMount200, grille

Compatibility

Scope of delivery

2 x Ci3 W200FM-S2
2 x Universal mounting ring with grille
2 x Mounting material

Brand	HELIX
Marca de Coche	Alfa Romeo, Audi, AUTOCARAVANA, Bmw, Bugatti, BYD, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, daewoo, Dodge, Ferrari, Fiat, Ford, GM, Honda, Hummer, Hyundai, Iveco, Jaguar, jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Mazda, Mercedes Benz, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Range Rover, Renault, Rolls Royce, Rover, Saab, Seat, Skoda, Smart, Ssang Yong, Subaru, Suzuki, Tata, Tesla, Toyota, Universales, Volkswagen, Volvo
CAR AUDIO	ALTAVOCES
Tipo producto car audio	ALTAVOCES

HELIX-CI3-W200FM-S2 WOOFER ALTO RENDIMIENTO 8″
