HELIX-CI7-T20FM-SC TWEETER 0.75″
HELIX-CI7-T20FM-SC TWEETER 0.75″
Tweeter de cúpula de seda de alta gama de 0,75”/20 mm con volumen de acoplamiento, tecnología FlexMount20 e imán de neodimio
399,00 €
Descripción
HELIX-CI7-T20FM-SC TWEETER 0.75"
Tweeter de cúpula de seda de alta gama de 0,75"/20 mm con volumen de acoplamiento, tecnología FlexMount20 e imán de neodimio
Technical data
|
Impedance |
Z |
4 Ω |
|
DC resistance |
Re |
3.4 Ω |
|
Frequency response |
|
1,500 Hz – 30,000 Hz |
|
Resonance frequency |
Fs |
950 Hz |
|
Sensitivity |
SPL |
91.0 dB @ 2.83V / 1m |
|
Voice coil diameter |
Ø |
20 mm |
|
Cone material |
|
Silk dome with coupling volume |
|
Outer diameter |
|
32 mm / 1.26" |
|
Installation diameter |
|
27.2 mm / 1.07" |
|
Installation depth |
|
19 mm / 0.75" |
|
|
||
|
Recommended crossover frequencies for the highpass |
||
|
Slope |
|
Minimum crossover frequency |
|
6 dB/Octave |
> 4,000 Hz |
|
|
12 dB/Octave |
> 3,000 Hz |
|
|
24 dB/Octave |
> 2,500 Hz |
|
Compatibility
- FlexMount20

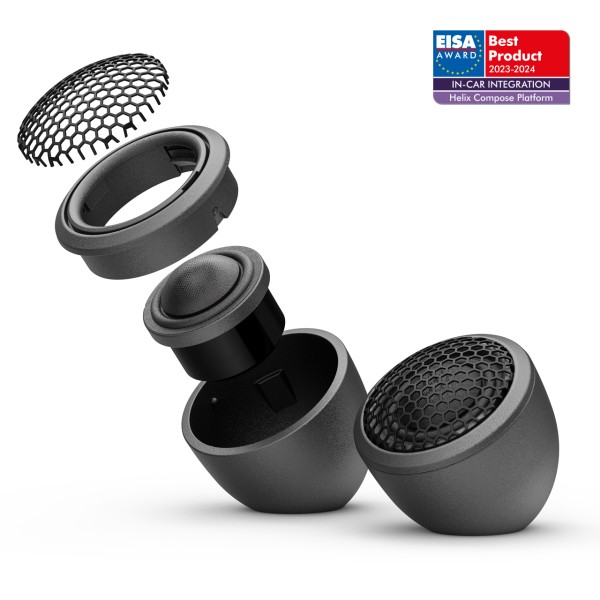

Scope of delivery
2 x Ci7 T20FM-SC
2 x Tweeter flush mount
2 x Tweeter pod
2 x Extension cable
2 x Mounting material
