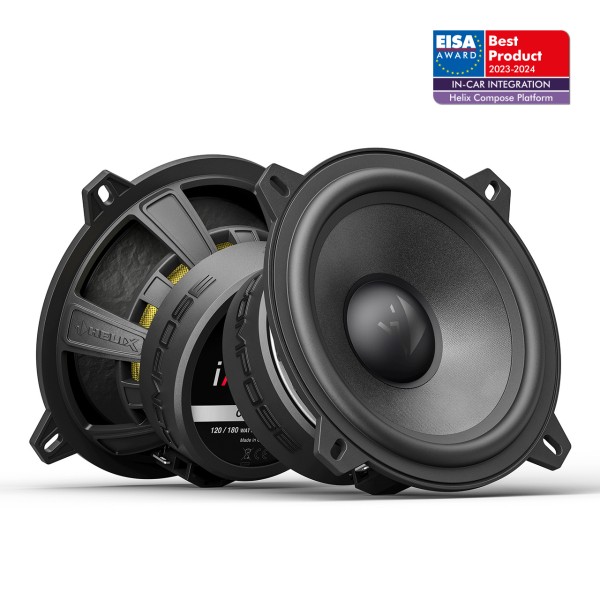

HELIX-CI7-W130-S3 MEDIOS GRAVES 5.25″
HELIX-CI7-W130-S3 MEDIOS GRAVES 5.25″
Medios graves de gama alta de 5,25 ”/130 mm con impedancia de 3 Ω y novedoso cono de papel UHD
399,00 €
Descripción
HELIX-CI7-W130-S3 MEDIOS GRAVES 5.25"
Medios graves de gama alta de 5,25 "/130 mm con impedancia de 3 Ω y novedoso cono de papel UHD
Technical data
|
Power handling RMS / Max. |
P |
120 / 180 Watts |
|
Impedance |
Z |
3 Ω |
|
DC resistance |
Re |
2.9 Ω |
|
Frequency response |
|
70 Hz – 4,000 Hz |
|
Resonance frequency |
Fs |
73 Hz |
|
Mechanical Q factor |
Qms |
2.38 |
|
Electrical Q factor |
Qes |
0.50 |
|
Total Q factor |
Qts |
0.41 |
|
Compliance |
Cms |
420 µm/N |
|
Equivalent air volume |
Vas |
4.3 L |
|
Force factor |
B*I |
5.5 Tm |
|
Sensitivity |
SPL |
92 dB @ 2.83 V / 1m |
|
Cone area |
Sd |
85 cm² |
|
Moving mass |
Mms |
11.1 g |
|
Cone material |
|
Ultra high damping (UHD) crafted paper cone |
|
Mechanical resistance |
Rms |
2.15 kg/s |
|
Voice coil diameter |
ø |
25 mm |
|
Voice coil winding height |
|
12.8 mm |
|
Max. linear excursion |
Xmax |
+/- 3.4 mm |
|
Outer diameter |
ø |
130 mm / 5.12" |
|
Installation diameter |
ø |
116.5 mm / 4.59" |
|
Installation depth |
|
58.5 mm / 2.31" |
|
Features |
|
ProConnect terminal |
Compatibility
- Wirekits
Scope of delivery
2 x Ci7 W130-S3
2 x Connection cable
2 x Mounting material
