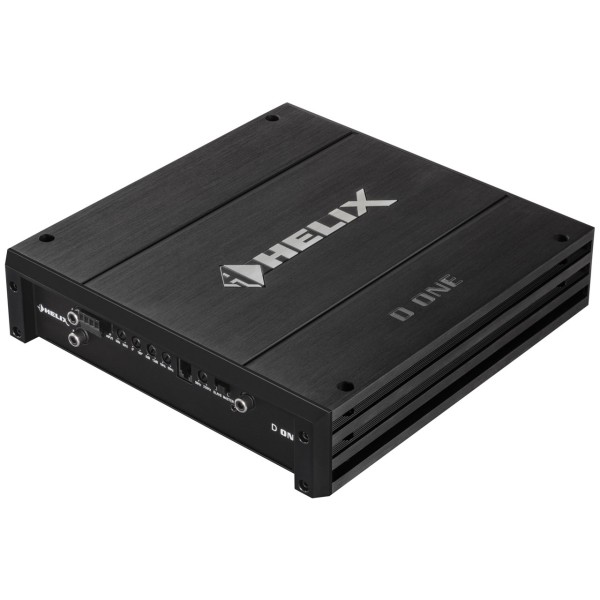

HELIX-D-ONE
HELIX-D-ONE
Amplificador de subwoofer de 1 canal con crossover activo integrado y estabilidad de 1 ohmio
249,00 €
Descripción
HELIX-D-ONE
Amplificador de subwoofer de 1 canal con crossover activo integrado y estabilidad de 1 ohmio
Features
- Small footprint Class D amplifier with high output power of 600 Watts RMS @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
- Start-Stop capability down to 6V supply voltage
- Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
- Integrated, active crossover with lowpass, bass boost, subsonic and phase control
- Extremely stable output stage with high-current power transistors and 1 Ohm stability
- Bass remote control for volume adjustment
- SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
- Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
Special features:
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear – but not with the M ONE.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX M ONE assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.
Technical data
|
Power RMS ≤ 1% THD+N |
Normal operation |
TwinPower Link |
|
– @ 4 Ohms |
1 x 200 Watts |
1 x 645 Watts |
|
– @ 2 Ohms |
1 x 340 Watts |
1 x 910 Watts |
|
– @ 1 Ohm |
1 x 530 Watts |
– |
|
– bridged @ 4 Ohms |
– |
– |
|
– bridged @ 2 Ohms |
– |
– |
|
Max. output power per channel*: |
Up to 660 Watts RMS @ 1 Ohm |
|
|
Amplifier technology |
Class D |
|
|
Inputs |
2 x RCA / Cinch |
|
|
Input sensitivity |
RCA / Cinch 0.5 – 6 Volts |
|
|
Input impedance RCA / Cinch |
30 kOhms |
|
|
Input impedance highlevel |
12 Ohms |
|
|
Outputs |
1 x Speaker output |
|
|
Output voltage RCA / Cinch |
– |
|
|
Signal converter for digital input |
– |
|
|
Frequency response |
10 Hz – 250 Hz |
|
|
Bass boost |
0 – 12 dB / 45 Hz |
|
|
Highpass |
– |
|
|
Lowpass |
50 Hz – 250 Hz adjustable |
|
|
Bandpass |
10 Hz – 250 Hz adjustable |
|
|
Subsonic |
10 Hz – 50 Hz adjustable |
|
|
Phase |
0 – 180° adjustable |
|
|
Slope high- / lowpass |
– |
|
|
Slope subsonic / lowpass |
12 dB/Oct. |
|
|
Signal-to-noise ratio digital input |
– |
|
|
Signal-to-noise ratio analog input |
95 dB (A-weighted) |
|
|
Distortion (THD) |
0.25 % |
|
|
Damping factor |
100 |
|
|
Operating voltage |
9.6 – 16 Volts (max. 5 sec. down to 6 Volts) |
|
|
Idle current |
1000 mA |
|
|
Operating temperature range |
-40° C to +70° C |
|
|
Fuse |
2 x 30 A Maxi-fuse (APX) |
|
|
Power rating |
DC 12 V ⎓ 60 A max. |
|
|
Additional features |
Active, adjustable crossover, bass boost, phase shift, TwinPower Link, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control |
|
|
Dimensions (H x W x D) |
53 x 250 x 230 mm / |
|
* In typical applications as subwoofer amplifier
Scope of delivery
1 x Amplifier HELIX D ONE
1 x Cable remote control
1 x Mounting material
1 x Instruction manual
| Brand | |
|---|---|
| Marca de Coche | Alfa Romeo, Audi, AUTOCARAVANA, Bmw, Bugatti, BYD, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, daewoo, Dodge, Ferrari, Fiat, Ford, GM, Honda, Hummer, Hyundai, Iveco, Jaguar, jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Mazda, Mercedes Benz, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Range Rover, Renault, Rolls Royce, Rover, Saab, Seat, Skoda, Smart, Ssang Yong, Subaru, Suzuki, Tata, Tesla, Toyota, Universales, Volkswagen, Volvo |
| CAR AUDIO | AMPLIFICADOR DSP |
| Tipo producto car audio | AMPLIFICADOR DSP |
Datos técnicos
| Potencia de salida RMS | |
| – @ 4 Ohmios | Modo HighPower: 4 x 60 Watts Modo MidPower: 4 x 35 vatios |
| – @ 2 Ohmios | – |
| – @ 1 Ohmio | – |
| – puenteado @ 4 Ohmios | – |
| – puenteado @ 2 Ohmios | – |
| – Salida de subwoofer @ 4 Ohmios | Modo de potencia alta y media: 1 x 90 vatios |
| – Salida de subwoofer @ 2 Ohmios | Modo de potencia alta y media: 1 x 160 vatios |
| Tecnología amplificadora | Clase GD |
| Entradas | 4 x Entrada de altavoz de alto nivel 1 x SPDIF óptico (12 – 96 kHz) 1 entrada remota |
| Sensibilidad de entrada | 5 – 11 voltios |
| Impedancia de entrada RCA /cinch | – |
| Impedancia de entrada de alto nivel | 9 – 33 Ohmios con ADEP.3 |
| Salidas | Salida de 5 altavoces 4 x RCA /Pincha 1 salida remota |
| Tensión de salida RCA /Cinch | 3 voltios |
| Respuesta de frecuencia | 20 Hz – 20.000 Hz |
| Resolución DSP | 64 bits |
| Potencia DSP | 295 MHz (1,2 mil millones de operaciones MAC/segundo) |
| Tasa de muestreo | 48 kHz |
| tipo DSP | Procesador de señal de audio |
| Convertidores de señal | A/D: BurrBrown D/A: BurrBrown |
| Entrada digital con relación señal-ruido | > 105 dB (A-ponderado) |
| Entrada analógica de relación señal-ruido | > 99 dB (A-ponderado) |
| Distorsión (THD) | < 0,03 % |
| Factor de amortiguación | > 50 |
| Tensión de funcionamiento | 10,5 – 17 voltios (max. 5 segundos. hasta 6 voltios) |
| Clasificación de potencia | CC 12 V ⎓ 40 A máx. |
| Corriente inactiva | 280 mA |
| Máx. corriente de salida remota | 500 mA |
| Rango de temperatura de funcionamiento | -40° C a +70° C |
| Fusible | Maxifusible 1 x 30 A (APX) |
| Características adicionales | Coprocesador de 32 bits, circuito ADEP.3, conmutador remoto automático, puerto de control inteligente, capacidad Start-Stop, USB |
| Dimensiones (H xW x D) | 35 x 85 x 110 mm /1,34 x 3,35 x 4,33″ |
