HELIX-IK-E8.1 SUBWOOFER
HELIX-IK-EB6.1-DVC2 SUBWOOFER
Subwoofer ventilado extremadamente compacto con chasis de 6” e impedancia de 2 x 2 ohmios
219,00 €
Descripción

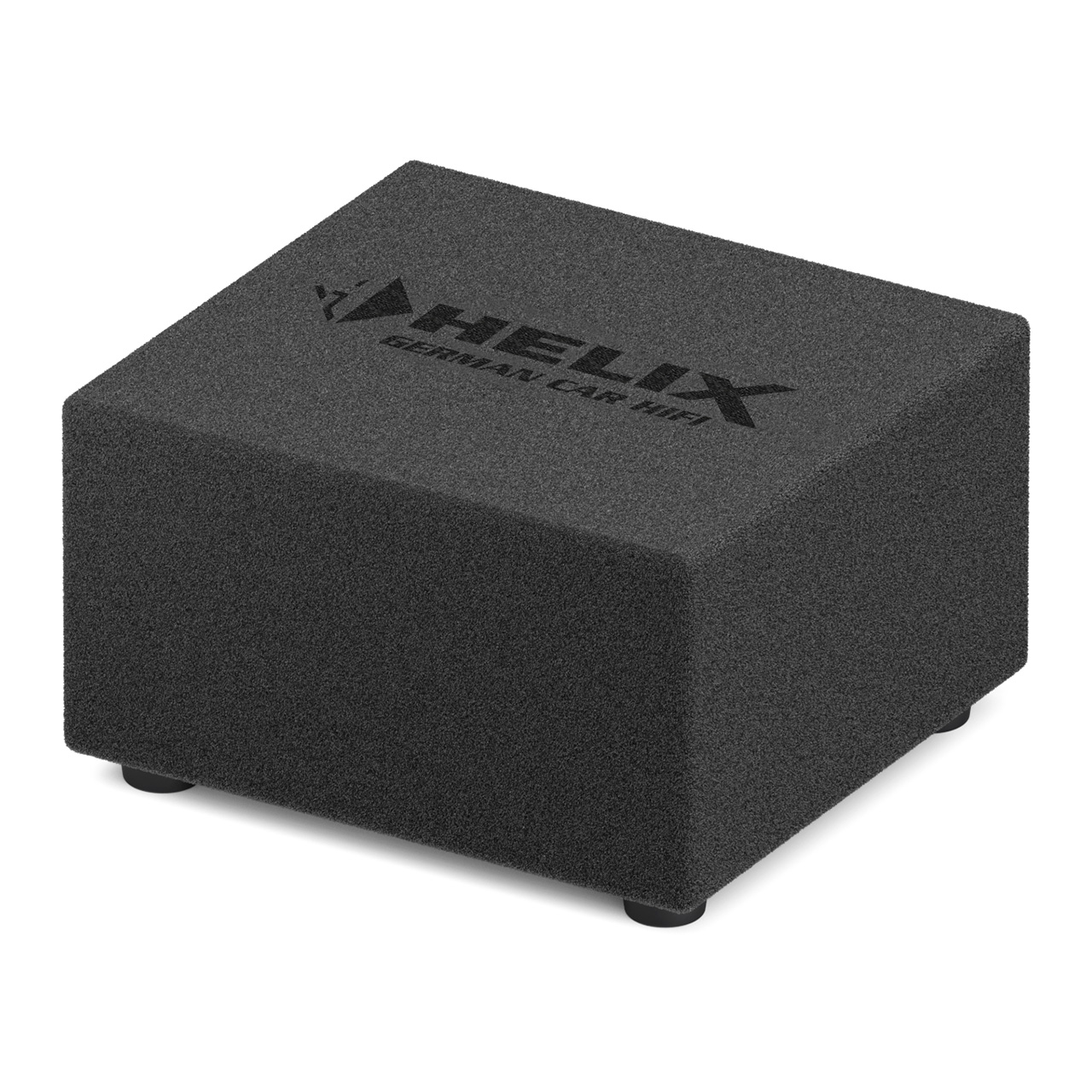

HELIX-IK-E8.1 SUBWOOFER
Subgrave Downfire en una carcasa compacta con chasis de 8´´/200 mm e impedancia de 2×2 ohmios o 1×4 ohmios o 1×1 ohmios
Features
- Downfire enclosure for ideal bass dispersion in the vehicle and perfect protection of the speaker
- Compact ported enclosure design ensures high sound pressures and allows space-saving integration in the vehicle
- Equipped with one powerful 200 mm / 8” subwoofer with hand-scooped paper cone for rich, deep bass
- Voice coil impedance configurable via connection terminal allows flexible system configuration – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm
- Pluggable screw terminal for quick and safe installation and removal
- Feet with Velcro tape for a secure stand in the vehicle
- Sturdy carpet surface with embroidered HELIX logo
Technical data
| IK E8.1-DVC2 | ||
| Power handling RMS | P | 300 Watts |
| Recommended amplifier power | RMS | 150 – 300 Watts |
| Impedance | z | 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω |
| Max. linear excursion | Xmax | +/- 8.0 mm |
| Port tuning frequency | Fb | 43 Hz |
| Sensitivity |
SPL |
89 dB @ 2.83V / 1m |
| Dimensions (H x W x D) |
184 x 310 x 285 mm |
|
| Integrated subwoofer chassis | HELIX IK W8-DVC2 | |
| Recommended DSP settings | “Self-define" highpass 44 Hz / Q = 1.6; EQ filter: 115 Hz / Q = 0.9 / -3.5 dB |
Scope of delivery
1 x Downfire enclosure subwoofer IK E8.1-DVC2
1 x Data sheet
Datos técnicos
| Potencia RMS /máx. | P | 300 /600 vatios |
| Impedancia | Con | 2 x 2 l/1 x 4 l/1 x 1 l |
| Máx. excursión lineal | Xmáx | +/- 6,0 mm |
| Frecuencia de sintonización del puerto | pensión completa | 37Hz |
| Sensibilidad 1 W /1 m | SPL | 88 dB |
| Dimensiones (H xW x D) | 132x725x350mm / 5,2 x 28,5 x 13,8“ | |
| Configuraciones de DSP recomendadas | filtro de paso alto “autodefinido” recomendado con frecuencia de corte de 37 Hz y Q = 1.2 filtro EQ adicional 95 Hz /Q = 0,7 / -3 dB |
