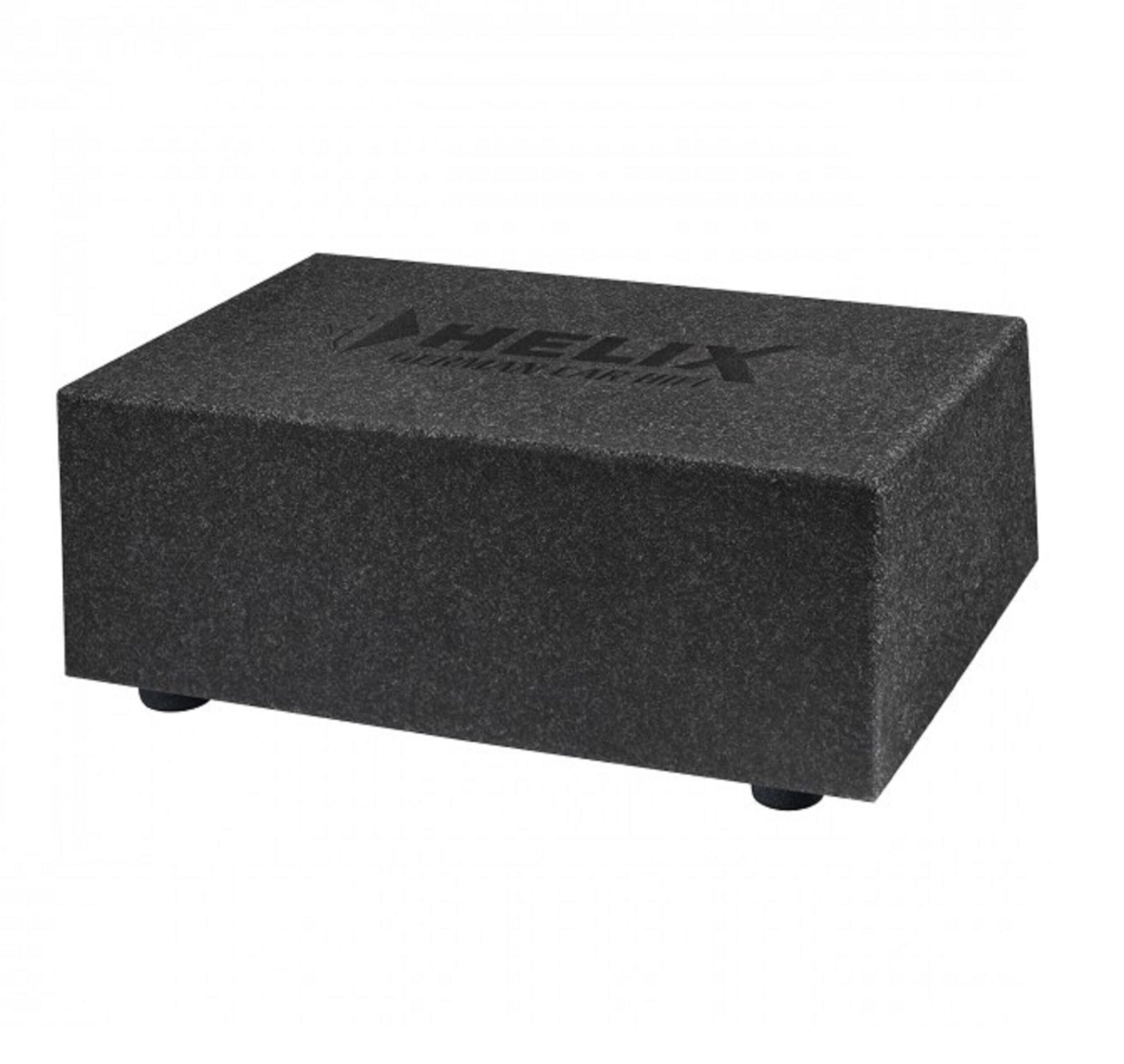

HELIX-K-10E.2 SUBWOOFER
HELIX-K-10E.2 SUBWOOFER
Subgrave Downfire en una caja ventilada compacta con chasis de 10” y una impedancia variable de 2×2 ohmios, 1×4 ohmios o 1×1 ohmios
319,00 €
Descripción
HELIX-K-10E.2 SUBWOOFER
Subgrave Downfire en una caja ventilada compacta con chasis de 10" y una impedancia variable de 2×2 ohmios, 1×4 ohmios o 1×1 ohmios
Features
- 10“ / 250 mm high excursion woofer with hand-scooped paper cone and dual voice coil
- Downfire enclosure technology for perfect protection of the speaker and ideal bass dispersion in the vehicle
- Sturdy carpet surface with embroidered HELIX logo
- Pluggable screw terminal for a quick and safe installation or removal
- Voice coil impedance configurable via connection terminal – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm
- Compact enclosure dimensions
Technical data
|
Power RMS / max. |
P |
300 / 600 Watts |
|
Impedance |
z |
2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω |
|
Max. linear excursion |
Xmax |
+/- 8.0 mm |
|
Port tuning frequency |
Fb |
43 Hz |
|
Sensitivity 1 W / 1 m |
SPL |
89 dB |
|
Dimensions (H x W x D) |
|
187 x 470 x 375 mm / |
|
Recommended DSP settings |
|
Recommended “self-define" highpass filter with 37 Hz cut-off frequency and Q = 1.5; |
Scope of delivery
1 x Downfire enclosure subwoofer HELIX K 10E.2
1 x Data sheet
Datos técnicos
| Potencia RMS /máx. | P | 300 /600 vatios |
| Impedancia | Con | 2 x 2 l/1 x 4 l/1 x 1 l |
| Máx. excursión lineal | Xmáx | +/- 6,0 mm |
| Frecuencia de sintonización del puerto | pensión completa | 37Hz |
| Sensibilidad 1 W /1 m | SPL | 88 dB |
| Dimensiones (H xW x D) | 132x725x350mm / 5,2 x 28,5 x 13,8“ | |
| Configuraciones de DSP recomendadas | filtro de paso alto “autodefinido” recomendado con frecuencia de corte de 37 Hz y Q = 1.2 filtro EQ adicional 95 Hz /Q = 0,7 / -3 dB |
