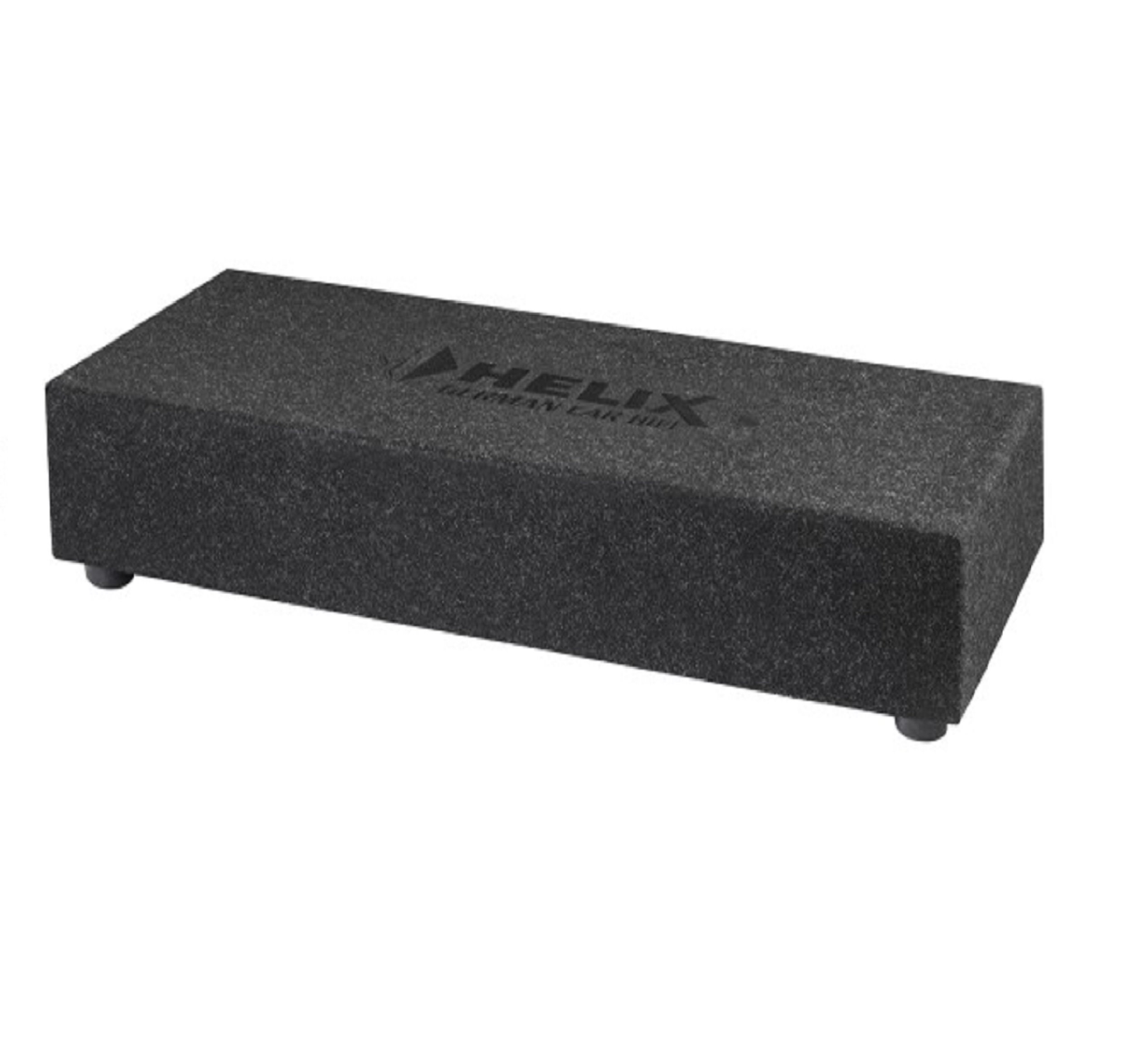

HELIX-K-10SE.2 SUBWOOFER
HELIX-K-10SE.2 SUBWOOFER
Subgrave Downfire en una carcasa ventilada extremadamente poco profunda con chasis de 10” e impedancia variable
319,00 €
Descripción
HELIX-K-10SE.2 SUBWOOFER
Subgrave Downfire en una carcasa ventilada extremadamente poco profunda con chasis de 10" e impedancia variable
Features
- Particularly flat 10” / 250 mm high excursion woofer with extremely stiff sandwich paper cone
- Voice coil impedance configurable via connection terminal – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm
- Downfire enclosure technology for perfect protection of the speaker and ideal bass dispersion in the vehicle
- Pluggable screw terminal for a quick and safe installation or removal
- Extremely shallow and space-saving vented enclosure
Technical data
|
Power RMS / max. |
P |
300 / 600 Watts |
|
Impedance |
z |
2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω |
|
Max. linear excursion |
Xmax |
+/- 6.0 mm |
|
Port tuning frequency |
Fb |
37 Hz |
|
Sensitivity 1 W / 1 m |
SPL |
88 dB |
|
Dimensions (H x W x D) |
|
132 x 725 x 350 mm / |
|
Recommended DSP settings |
|
recommended “self-define" highpass filter with 37 Hz cut-off frequency and Q = 1.2 |
Scope of delivery
1 x Downfire enclosure subwoofer HELIX K 10SE.2
Datos técnicos
| Potencia RMS /máx. | P | 300 /600 vatios |
| Impedancia | Con | 2 x 2 l/1 x 4 l/1 x 1 l |
| Máx. excursión lineal | Xmáx | +/- 6,0 mm |
| Frecuencia de sintonización del puerto | pensión completa | 37Hz |
| Sensibilidad 1 W /1 m | SPL | 88 dB |
| Dimensiones (H xW x D) | 132x725x350mm / 5,2 x 28,5 x 13,8“ | |
| Configuraciones de DSP recomendadas | filtro de paso alto “autodefinido” recomendado con frecuencia de corte de 37 Hz y Q = 1.2 filtro EQ adicional 95 Hz /Q = 0,7 / -3 dB |
