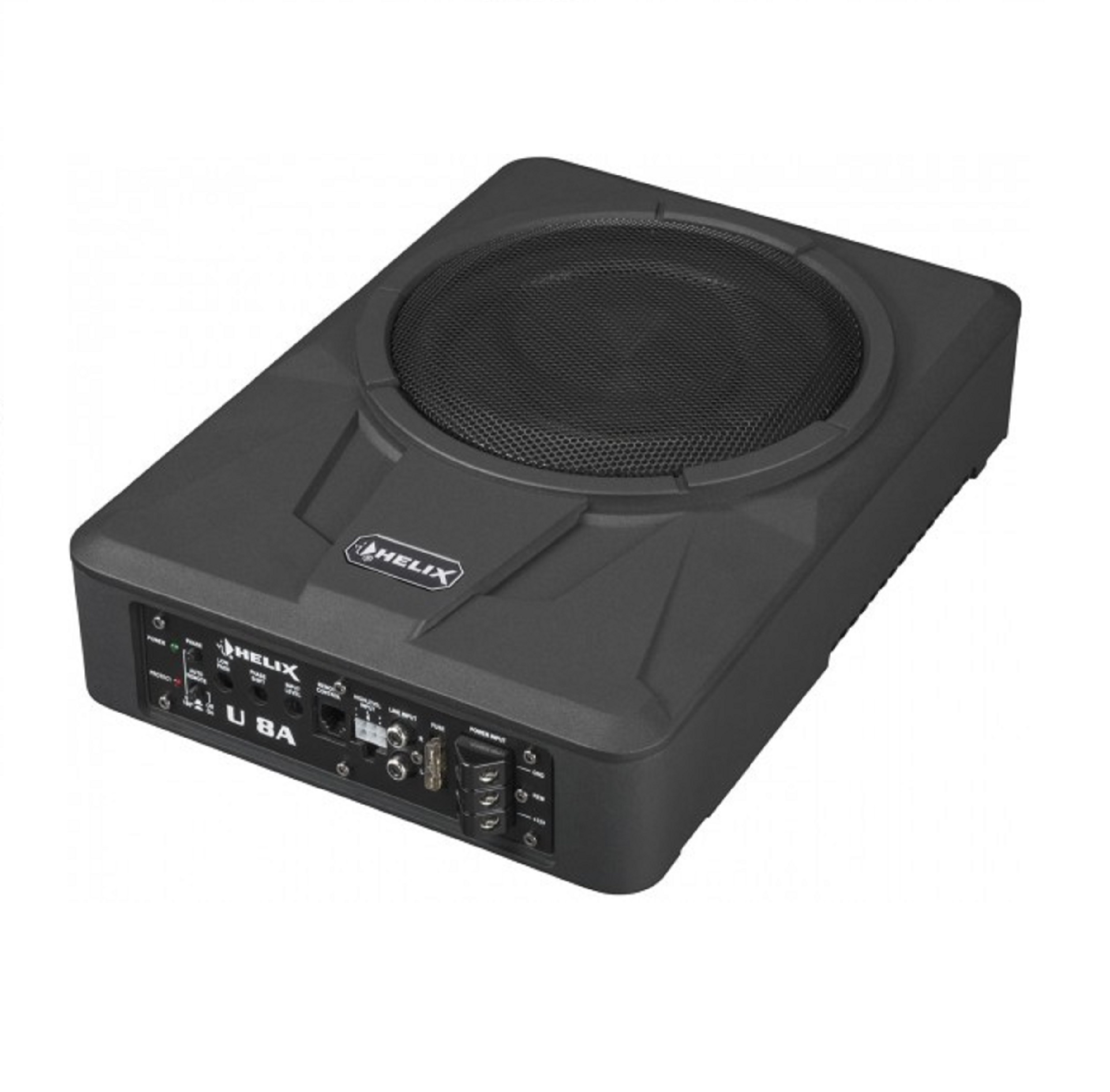

HELIX-U-8A SUBWOOFER
HELIX-U-8A SUBWOOFER
Subwoofer activo ultracompacto de 8”
299,00 €
Descripción
HELIX-U-8A SUBWOOFER
Subwoofer activo ultracompacto de 8"
Features
- Powerful, integrated Class AB amplifier with 180 W RMS power for punchy bass
- Solid and low-resonance diecast aluminium housing for precise bass reproduction and optimum heat dissipation
- Heavy-duty 8” / 200 mm chassis with extremely stable aluminum cone for compression-free transformation of the amplifier power into sound pressure
- Integrated Class AB amplifier with 180 W RMS power
- Continuously adjustable, steep-flanked lowpass filter
- Particularly sensitive adjustment of the phase
- Cable remote control for volume adjustment included in delivery
- Especially flat housing design – ideal for space-saving under-seat mounting
Technical data
|
Power RMS / max. |
180 / 360 Watts |
|
Woofer diameter |
8" / 200 mm |
|
Inputs |
2 x RCA / Cinch |
|
Input sensitivity |
Highlevel 1.2 – 20 Volts |
|
Input impedance RCA / Cinch |
10 kOhms |
|
Input impedance highlevel |
33 Ohms |
|
Frequency response |
45 – 150 Hz |
|
Lowpass |
50 – 150 Hz adjustable |
|
Subsonic |
16 Hz / 12dB/Oct. |
|
Phase switch |
0° / 180° switchable |
|
Phase shift |
0 – 180° adjustable |
|
Slope lowpass |
24 dB/Oct. |
|
Signal-to-noise ratio |
> 92 dB (A-weighted) |
|
Distortion (THD) |
< 0.4 % |
|
Operating voltage |
10.5 – 16 Volts |
|
Fuse |
25 A Maxi-fuse (APX) |
|
Additional features |
Diecast aluminum housing, cable remote control for volume adjustment, Auto Remote switch |
|
Dimensions (H x W x D) |
78 x 245 x 345 mm / |
Scope of delivery
1 x Active subwoofer HELIX U 8A
1 x Cable remote control
1 x Mounting material
1 x Instruction manual
Datos técnicos
| Potencia RMS /máx. | P | 300 /600 vatios |
| Impedancia | Con | 2 x 2 l/1 x 4 l/1 x 1 l |
| Máx. excursión lineal | Xmáx | +/- 6,0 mm |
| Frecuencia de sintonización del puerto | pensión completa | 37Hz |
| Sensibilidad 1 W /1 m | SPL | 88 dB |
| Dimensiones (H xW x D) | 132x725x350mm / 5,2 x 28,5 x 13,8“ | |
| Configuraciones de DSP recomendadas | filtro de paso alto “autodefinido” recomendado con frecuencia de corte de 37 Hz y Q = 1.2 filtro EQ adicional 95 Hz /Q = 0,7 / -3 dB |
